PROJECT PICTURES





PROIECTARE SI STUDIU TEHNIC

(DESIGN AND TECHNICAL STUDY)

Model grafic 3D

(generator + pale)







Model 3D graphics

(generator + blades)



model-1611 baza  generator varianta 2.JPG



Model grafic 3D

(vedere de ansamblu)



Model 3D graphics

(overview)

model-0752 Eoliana - ansamblu C c

Model grafic 3D

(vedere de ansamblu)



Model 3D graphics

(overview)

model-0752 Eoliana B - MIC

Model grafic 3D

(image 1)



Model 3D graphics

(image 1)

model-0752 Eoliana - ansamblu A c

Model grafic 3D

(image 2)



Model 3D graphics

(image 2)

model-0752 Eoliana - ansamblu B c

Model grafic 3D

(sistem prindere cabluri de otel)



Model 3D graphics

(steel cables fastening system)

model-0752 Eoliana D

Macheta 1:10

20150811_191507







FAZA DE PRODUCTIE



Montaj preliminar



(preliminary assembly)


Lagare cu Rulmenti axiali



Thrust Bearings


Montaj preliminar

Verificare planeitate



(preliminary assembly

Checking flatness)

20150211_150348

Aliniere magneti



Alignment magnets

20150211_150401

RAZ_5596

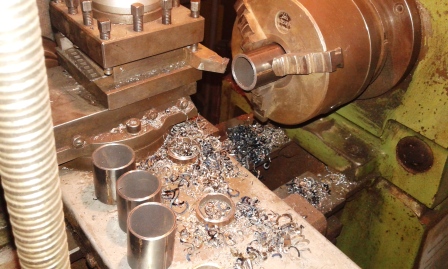

Debitare pe strung distantieri de reglaj dintre placile cu magneti



Cutting lathe tuning spacers between the plates with magnets

20150211_150408



20150211_150453

24 de magneti din neodium



24 neodium magnets

20150211_160708

Generator cu bobine introduse in rasina epoxidica



Generator with coil placed in epoxy resin

20150211_160719

Suporti brate pale



Blade holder with arms

20150211_160730

Axul central cu ranforsarile inferioare



The central axis of the lower reinforcements

20150211_160750

Montaj preliminar fara brate



Preliminary assembly without arms

20150212_111512

Ansamblu in teste

20150212_111521

Distantieri interplaci

20150212_111533

Placa port magneti

20150218_111803

Placa de reglaj ax

20150218_111814

Pupitru de comanda plasma

20150218_115235

Drivere + surse motoare servo

20150218_115358

THC

20150218_115411

RotoPlasma

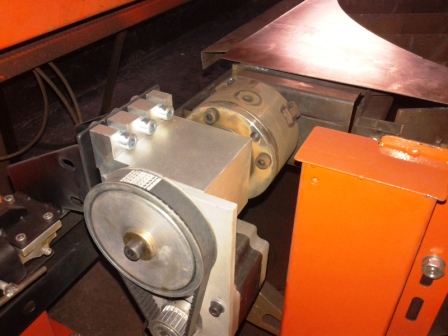

20150218_115420

Calea y+z

20150218_115429

Taiere placi port rulmenti

20150218_115504

Cele 2 tavi de alimentare instalatie taiere cu plasma





The two trays plasma cutting power plant

20150218_115521

Instalatie taiere cu plasma



Plasma cutting plant

20150218_115556

Banc de probe (simulare vant variabil)



Test bench (variable wind simulation)

20150302_112003

Teste

20150303_145449

Taiere placi ptr. turn

20150409_181343

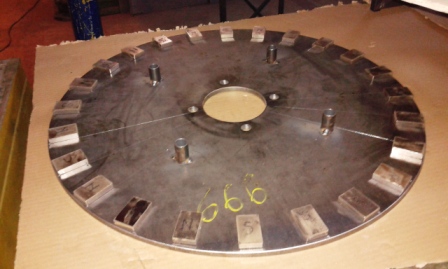

Placa port magneti



Plate for magnets

20150410_094941



20150303_145458

Reglaj viteza vant (simulare)



Setting wind speed (simulation)

20150414_123048

Inregistrare performante generator in conditii maxime de exploatare



Register overall performance in maximum operating conditions

20150515_170717

Inregistrare valori de tensiune si curent la bornele generatorului



Register values of voltage and current at the generator terminals

20150515_170706

Teste … teste … teste …



Testing ... testing ... testing ...

20150515_170726

Instalatia electronica de control date



Electronic control the data plant

20150804_110453

Sursa de alimentare



Power source

20150804_110456

Frana electrodinamica + modulul de schimbare din tensiune altenativa in contiuna





Electrodynamic brake + voltage switch module from AC in DC

20150804_110459

Modulul GPRS



GPRS Module

20150804_110544

Modulul principal control date



The main module control data

20150804_110550



20150804_110719

Modul meteo (coletare date senzori)



The weather module (parcel data sensors)

20150804_110734

Modul senzor de temperatura gerator



The module generator temperature sensor (monitoring magnets)

20150804_110741

… toata electronica …





... all electronics ...

20150804_110807

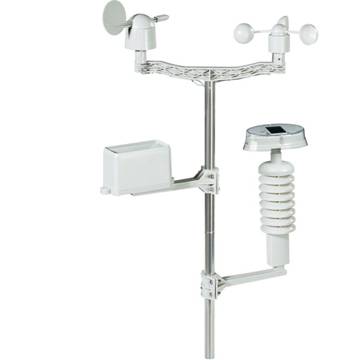

Senzorii meteo

-Viteza vant

-Directie vant

-Precipitatii

-Umezeala

-Temperatura aer






Cutia de rezistete ptr. frana electrodinamica





Box of the resistance to electrodynamics brake

20150804_141027



Sistem de fixare placa port magneti (reglaj de planeitate)





Fixing system port for plate magnets (flatness control)

20150804_160746



Sistem de fixare placa port magneti (reglaj de planeitate)



Sistem de fixare placa port magneti (reglaj de planeitate)

20150804_160857



Rezistente frana electrodinamica



Electrodynamic brake resistor

20150806_103950



ansamblu





assembly

20150806_104053

Model grafic 3D

(vedere )

model-0752 Eoliana F



Model grafic 3D

(tija ptr prindere cablu otelit)





Model 3D graphics

(for rod cable clamping steel)

model-0752 Eoliana J

Prindere lagar cu rulmenti



Bearing frame grip

20150807_102157

Brate verticale port pale

20150807_122331

Turnurile … gemene

photo 1

photo 2

photo 3

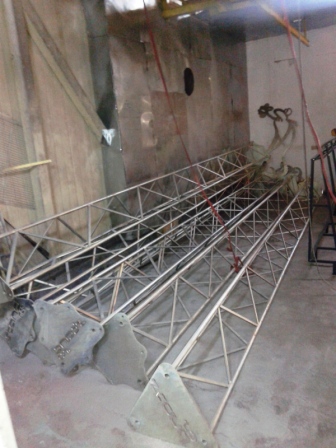

Pale in faza incipienta

photo 4

Pale + trunchi turn

20150811_141905

Prima asamblare

20150807_141447

Pale la vopsitorie

20150811_173120

Pale la vopsitorie

20150811_173130

Turnuri dupa zincare





Towers after zinc galvanizing

20150811_173143

Ultimele reglaje



Last adjustments

20150812_090817

Finisaj (antirugina) pala



Finish (rust inhibiting) pala

20150812_090842

Montaj pala

20150812_122118









INSTALARE TURBINA EOLIANA (BUCURESTI – SEDIU ROLIX)

INSTALLATION OF WIND TURBINE (Bucharest - ROLIX OFFICE)









Statia meteo (senzori)

20150813_101322

Oare cum o montam???

20150813_105343

Pregatiri ridicare turbina eoliana

20150813_105306

Montaj intinzatoare

20150813_104318

O ultima revizie

20150812_142929

Montaj turn



20150813_105329

Montaj turbina

20150813_105804

Se strang ultimele suruburi

20150813_105800

Am urcat-o …

20150814_074659

Cum o fii la 12 m?

20150814_073720

Ce de cabluri ….

20150814_074409

… iar sedinta in trei …

20150814_074415

Se intind toate cablurile otelite.

20150814_073708

Portocala mecanica …

20150814_081141

… unde-i vantul ???

20150814_074544

Sper sa nu vina vijelia acum …

20150814_081548

Cine se urca mai sus?

20150814_084633

Zambiti … va rog …

20150814_081616

Ia firu … tine firu … da surubeltina … ia cheia … unde-i saiba de 6 …… Upsss … am uitat-o in fabrica ……

20150814_081600

S-a repus statia meteo.

20150814_084606

Am terminat ultimul surub ...

20150814_074653

Eeeee … asta-i tot …

20150814_090132

GATA … S-a montat … acum sa se invarta …

20150814_074311















INSTALARE TURBINA EOLIANA (comuna Bragadiru)

INSTALLATION OF WIND TURBINE (Bragadiru village)

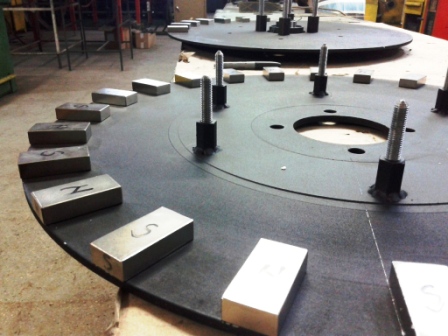

Vericare polaritate magneti neodim



Check polarity of the neodymium magnets













Gata pentru asamblare



Ready for assembly






Suportii de pale, rulmentii cu lagare si distantierii platanelor



Carriers of blades, bearings and spacers bearing platters






Ajustare suporti brate de pale



Adjust the supports for pale arms






Generatorul asamblat + firul de la senzorul de temperatura



Generator assembled + wire temperature sensor






Testul pentru simularea de vant



Test for simulating wind










Notarea datelor pentru realizarea graficelor de performanta



Recording information for charting performance










Realizarea suportiilor de pale



Making blade brackets










Asamblarea finala



Final assembly






Varianta cu diametru micsorat



The variant with reduced blade diameter

















Locul de amplasare



Location













S-au facut gaurile pentru suportii de cabluri cat si suportul pentru turn



They made holes for cables and support brackets for tower






Toti suportii vor fi ingropati in beton



All supports are sunk in concrete






Se transporta pilon central



Transporting the central tower













Turnul in pozitia finala





Tower in final position










Se asambleaza generatorul



Are assembled the generator













Se pregatesc si palele





They are preparing the blades








S-a montat si “capra” pentru ridicarea turnului



It assembled the "goat" for lifting tower













S-au montat cablurile de ancorare



They assembled the anchor lines










Se inlatura vechea turbina eoliana



Discard the old wind turbine






Macaraua ridica varful turbunei eoliene



The crane lift the top of the wind turbine






Se asteapta ca vantul sa scada in intensitate



It is expected that the wind decrease in intensity

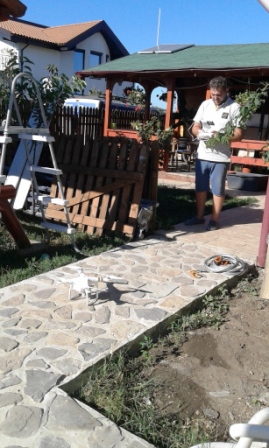

Pregatim drona pentru filmarea instalarii turbinei eoliene



We are preparing to shoot the drone of the wind turbine installation






Ultimele reglaje



Last adjustments








Video (turbine instalation)





Instalarea ultimelor cabluri



Installing the latest cables






Ultimele suruburi …



Latest screws ...






Suntem aproape gata …





We're almost ready ...






… gata ... jos de acolo …





… prepared ... down there ...






GATA .. am teminat …





READY .. I am finished ...






… ne da chiar si curent …





... it gives us even power ...
